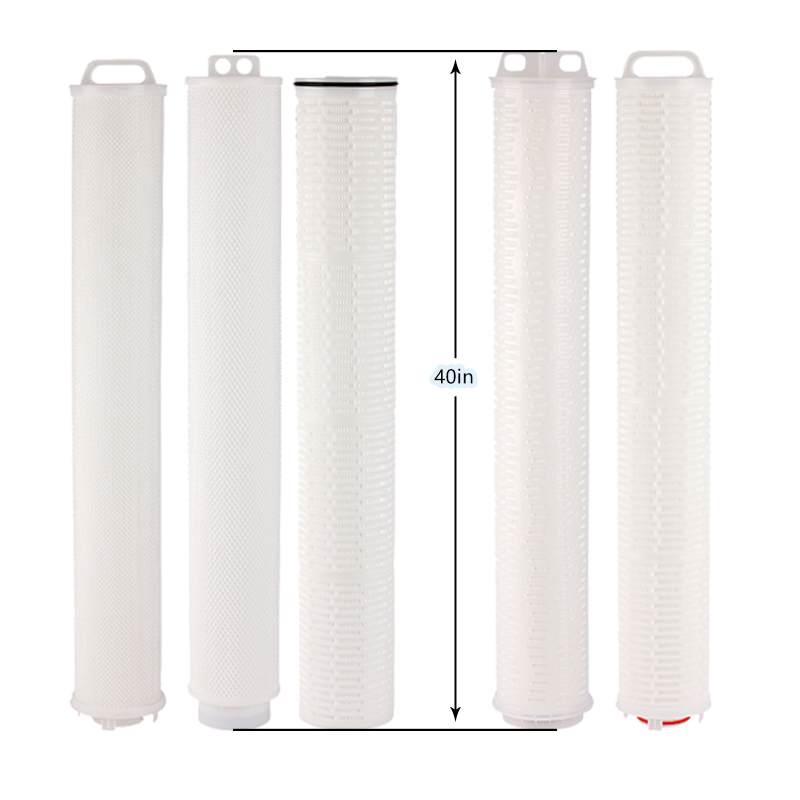

40 inch large flow water filter element

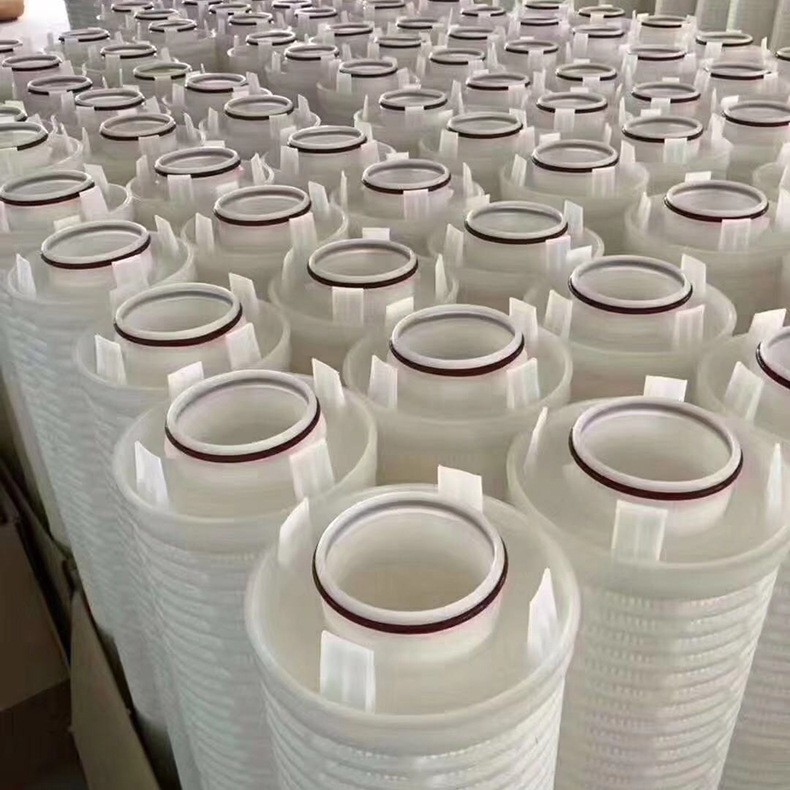

The large flow water filter element has a large diameter, no inner frame, one-way end cover opening, folding type, inside and out. This series of filter elements adopts the crescent-shaped geometric folding method, and the large diameter allows you to filter out a large amount of impurity particles with a small number of filter elements, and is suitable for large flow conditions.

Technical Parameters

1. General dimensions Outer diameter: 152.4mm, Inner diameter: 89mm

2. Processing accuracy level: 1, 3, 5, 10, 20, 40, 70, 90, 150, 200 microns

3. 20 inches – 68gpm/psid (257lpm/70mbar) (μm) water velocity

4. 40 inches – 135gpm/psid (511lpm/70mbar)

5. 60 inches – 204gpm/psid (772lpm/70mbar)

Features

1. The flow rate of a single filter element is large

2. Low installation cost and low operation cost

3. Small number of replacement filter elements

4. Filtration accuracy 1-200um

5. High quality filter material

6. The filtering method of inside and outside, the impurities are intercepted inside the filter element

7. No metal skeleton, greatly reducing the loss caused by discarding

8. High filtration efficiency
