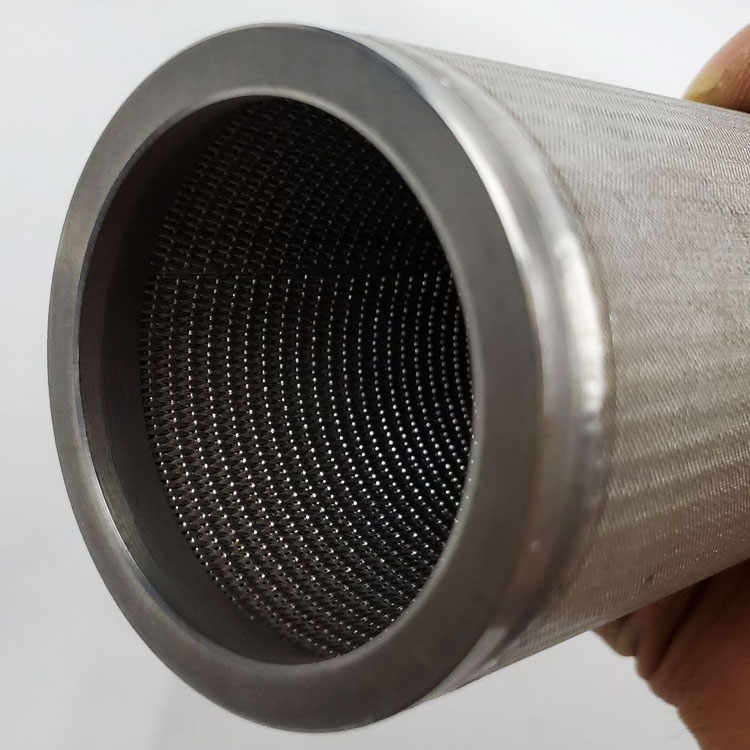

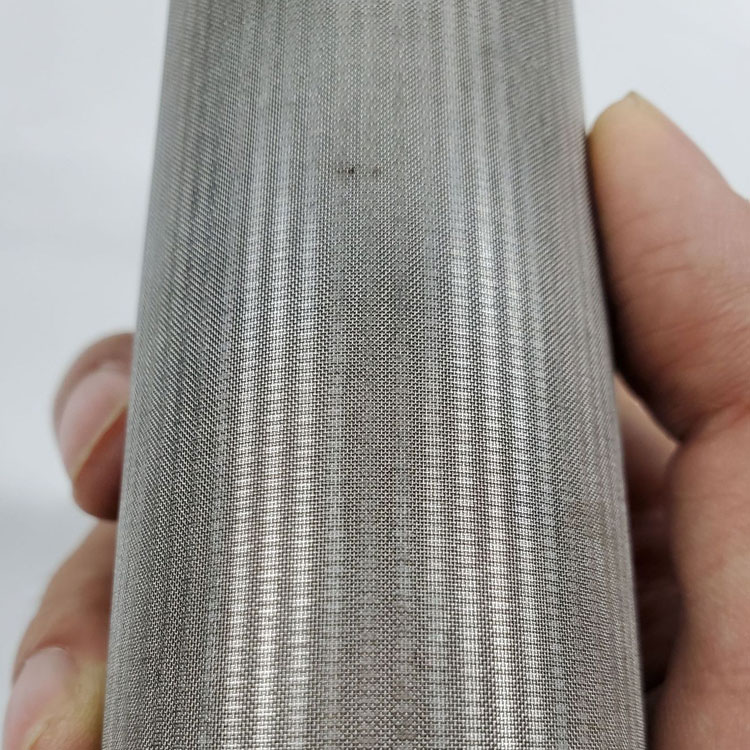

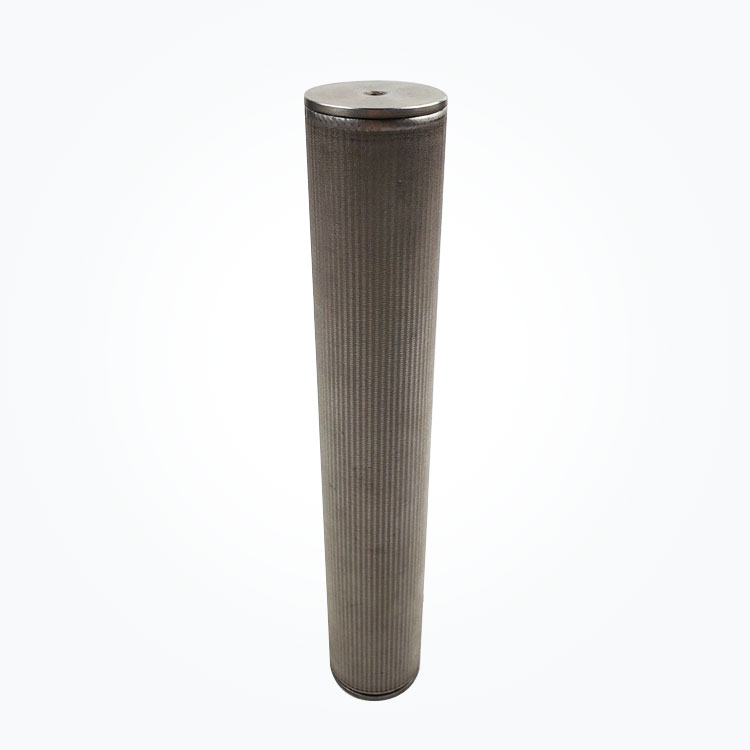

Customized high temperature and corrosion resistant sintered filter element

The main filter material is standard five-layer sintered mesh. Standard five layer sintering is five layers of stainless steel wire mesh superimposed by vacuum sintering. The filter made of it has the characteristics of strong corrosion resistance, good permeability, high strength, easy to clean and reverse cleaning, accurate filtration, clean filter material, screen does not fall off and so on.

Multilayer metal sintering mesh is a new type of filter material with high mechanical strength and overall rigidity, which is made of multilayer stainless steel wire mesh after special lamination pressing and vacuum sintering. Filter production sintered mesh filter core of its layers of mesh mesh interlace, so as to form a uniform and ideal filtration structure, making the material has the advantages of ordinary metal mesh can not be comparable, such as high strength, good rigidity, mesh shape stability, etc.. Due to the reasonable matching and design of the material's void size, permeability and strength characteristics, it has excellent filtration accuracy, filtration resistance, mechanical strength, wear resistance, heat resistance and processing, and its comprehensive performance is obviously better than other types of filtration materials

Structure and characteristics

1) Standard five-layer net is composed of a protective layer, a precision control layer, a dispersion layer and a multi-layer reinforcement layer;

2) high strength: five layers of screen sintering, with high mechanical strength and compressive strength;

3) High precision: uniform surface filtration performance can be played for filtration particle size of 2-200um;

4) Heat resistance: can be durable from -200 degrees up to 650 degrees of continuous filtration;

5) Cleaning: because of the excellent countercurrent cleaning effect of the surface filter structure, cleaning is simple.
