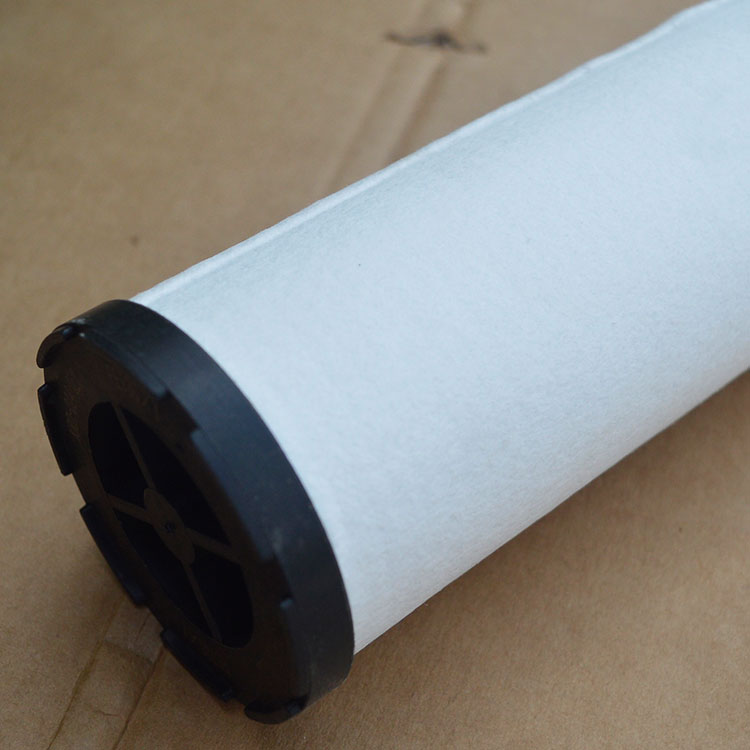

Dry gas seal filter element
Dry gas seal filter element have to be replaced at a certain differential pressure. Design criteria include not only the gas components, but the operational parameters such as volume flow, pressure, temperature, separation efficiency, differential pressure and expected amount of particles.
■ Application field
Syngas compressor dry gas seal seal
Dry gas seal isolator for syngas compressor
First level filter for dry gas seal of refrigerant compressor
Ammonia compressor filter
High and low pressure cylinder isolation gas
High and low pressure cylinder main sealing gas
Dry gas seal secondary seal
■ Product characteristics
Imported filter material is selected to ensure filtration accuracy
High filtration efficiency and stable performance
■ Technical specification
Size of filter element: Φ36 ×64mm Φ36 ×178mm Φ52 ×158mm Φ62 ×223mm Φ70 ×423mm Φ115 ×470mm or customized according to customer requirements
■ Material of components
Filter material: glass fiber sintered, stainless steel fiber sintered felt
End cover material: stainless steel 316
Frame material: stainless steel 316
Filtration precision: 1, 3, 5 microns
