Five-layer sintered mesh filter element

Five-layer sintered mesh filter element

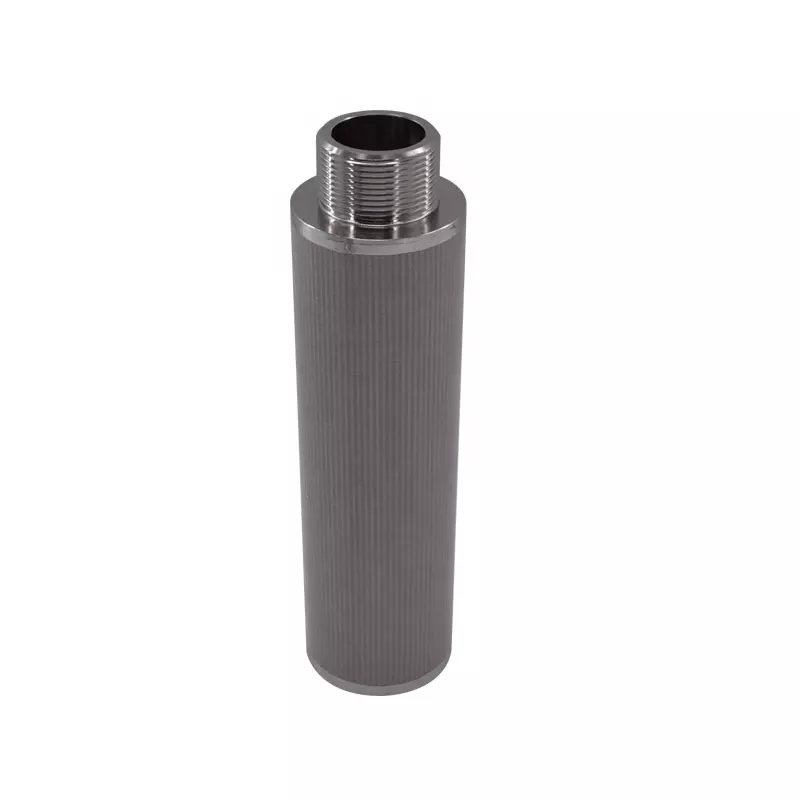

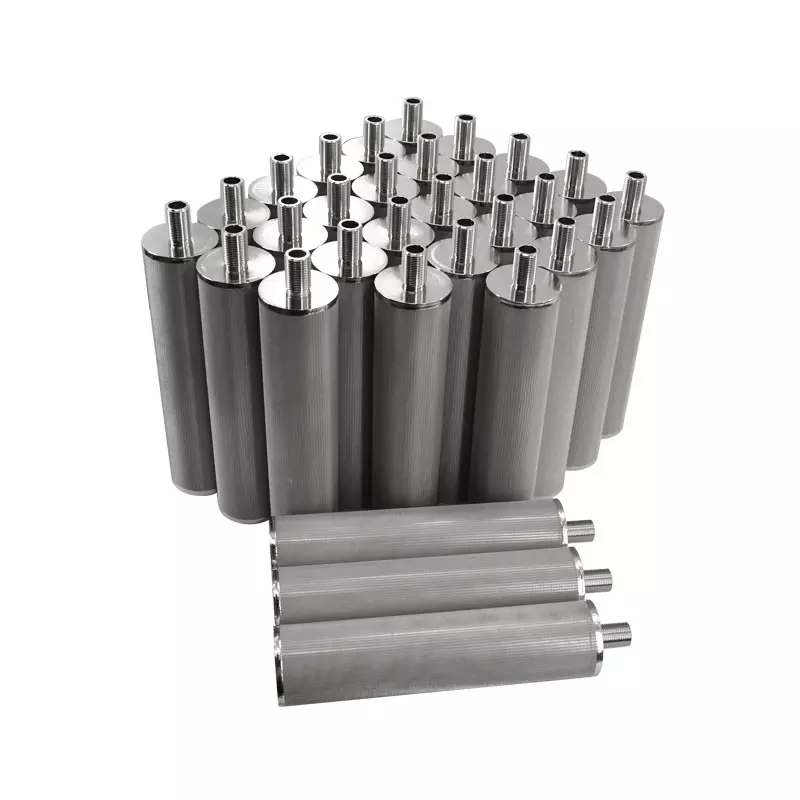

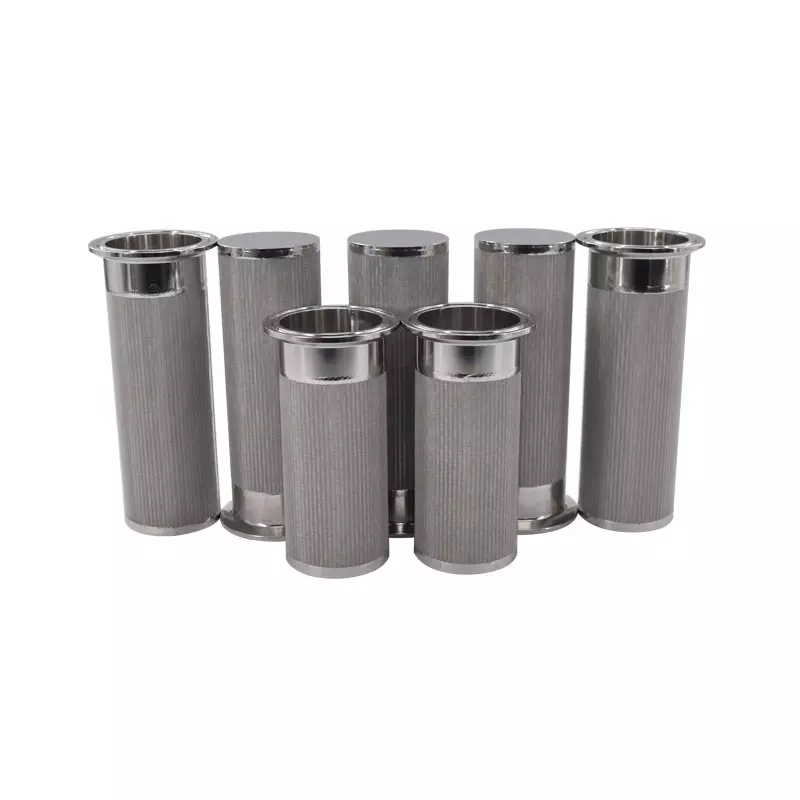

The standard five-layer sintered mesh filter element is mainly rolled by the standard five-layer sintered mesh filter material. The standard five-layer sintered wire mesh is made of five layers of stainless steel wire mesh superimposed and vacuum sintered. The filter element made of standard five-layer sintered mesh has the characteristics of strong corrosion resistance, good permeability, high strength, easy cleaning and back cleaning, uniform filtration accuracy, hygienic and clean filter material, and non-shedding wire mesh.

The meshes of each layer of the sintered mesh filter element are interlaced with each other, thus forming a uniform and ideal filtering structure, which makes the material have advantages that ordinary metal mesh cannot compare with. For example, high strength, good rigidity, stable mesh shape, etc. Due to the reasonable matching and design of the pore size, permeability and strength characteristics of the material, it has excellent filtration accuracy, filtration resistance, mechanical strength, wear resistance, heat resistance and processability, and the comprehensive performance is better. Higher than other types of filter materials.

Features:

1) The five-layer sintered mesh is composed of a protective layer, a filter layer, a dispersion layer and two skeleton layers;

2) High strength: after sintering the five-layer wire mesh, it has high mechanical strength and compressive strength;

3) High precision: It can exert uniform surface filtration performance for the filtration particle size of 1 to 200um;

4) Heat resistance: It can be used for continuous filtration from -200 degrees to up to 650 degrees;

5) Cleanability: Due to the surface filter structure with better countercurrent cleaning effect, the cleaning is simple.

6) It has good permeability and high strength, no need to add support structure, no material falling off normally, strong corrosion resistance, easy to clean and not easy to damage.

The main purpose:

1. Filtration and purification of various polymer melts in chemical and film industries;

2. Filtration of various high-temperature and corrosive liquids in petroleum and chemical fields;

3. Filtration of various hydraulic oil and lubricating oil for mechanical equipment;

4. Clarification and filtration of various liquids in industries such as medicine, biology, and beverages.
