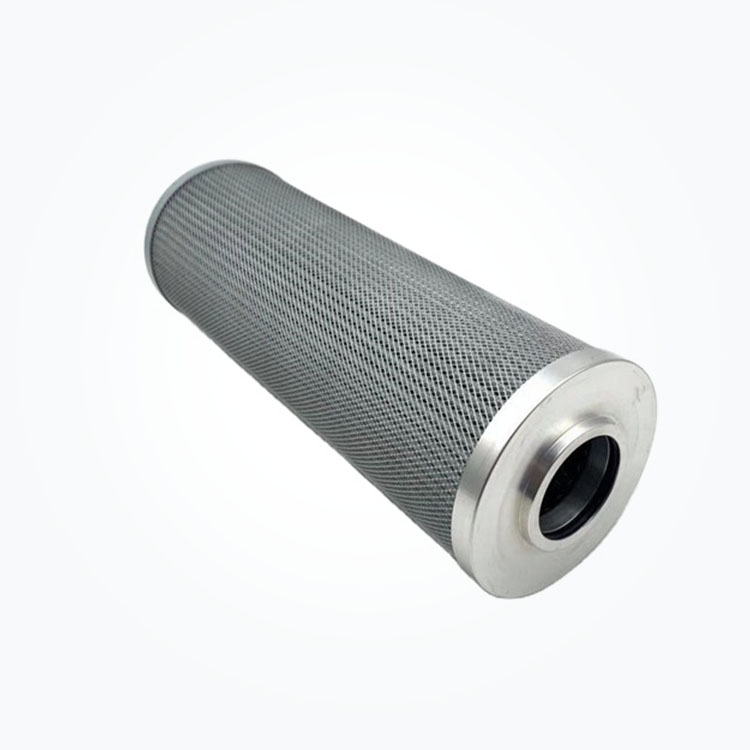

Hydac 0060D005BH3HC Replacement Filter
The hydraulic filter element is an indispensable part of the pipeline series that conveys the medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium.
The hydraulic filter element is an indispensable part of the pipeline series that conveys the medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium. It can protect the normal operation of the equipment. When the fluid enters the filter, the impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is needed, just take out the hydraulic filter element from the filter, treat it with industrial liquid and install it.
Performance Data
Micron Rating: 6.00 ABSOLUTE
Beta Rating: B6 = 200
Collapse Pressure Rating: 3000 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 1.86 IN (47.24 MM)
Outer Diameter, Bottom: 1.86 IN (47.24 MM)
Inner Diameter, Top: 0.88 IN (22.35 MM)
Inner Diameter, Bottom:
Length: 3.31 IN (84.07 MM)
Our Hydac 0060D005BH3HC replacement hydraulic filter is guaranteed to be directly replaced in form, assembly and function.
