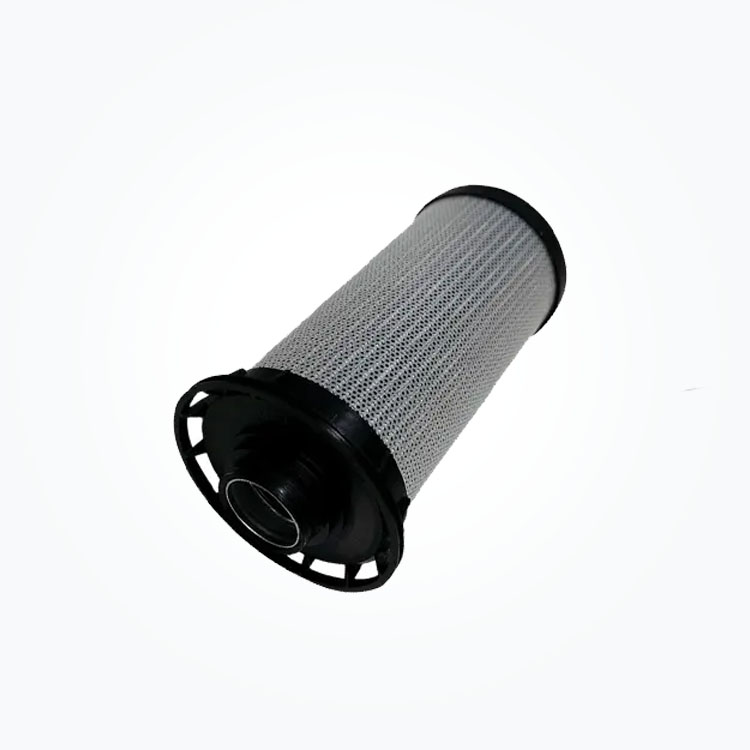

Hydraulic oil filter 0330R010ON

It is usually installed in the inlet filter of the hydraulic system to filter out metal particles, pollution impurities, etc. in the fluid medium.

Hydraulic oil filter 0330R010ON

1. The filter element is made of imported glass fiber/stainless steel mesh, which has the advantages of convenient sewage discharge, large flow area, small pressure loss, simple structure, small size, light weight, and uniform filter material.

2. The compatibility of the filter material is suitable for the filtration of common hydraulic oil.

Product Name	0330R010ON
Product Type	Hydraulic Oil Filter Element
Certificate	ISO/TS16949
Applicable	Industrial Hydraulic Oil System
Filter Media	Microglass + Nitrile Rubber (NBR)
Filter Efficiency	99.9%
Filter Rating	10 µm
Configuration	One Open Cap, One Bypass Cap
Beta Rating	ßx(c) ≥ 1000
Bypass Pressure	43 psi 3 bar
Operating Temperature [Min]	-30 ºC -22 ºF
Operating Temperature [Max]	100 ºC 212 ºF
