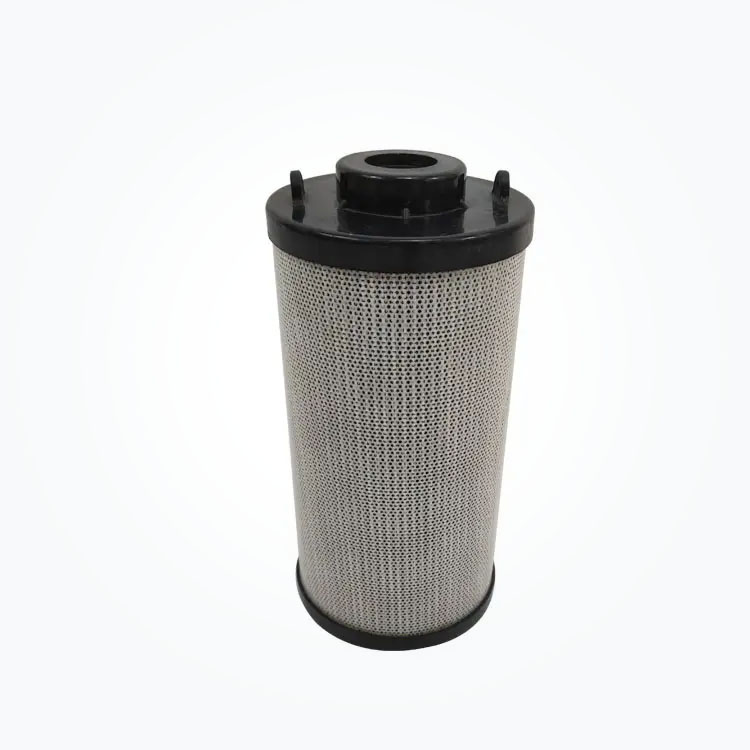

Hydraulic oil filter element 0330R010BN4HC

Hydraulic oil filter element 0330R010BN4HC has the characteristics of high filtration precision, large dirt holding capacity, and easy replacement

Hydraulic oil filter element 0330R010BN4HC

Hydraulic oil filter element 0330R010BN4HC has the characteristics of high filtration precision, large dirt holding capacity, and easy replacement. The filter element allows the system to quickly achieve and maintain the desired level of oil cleanliness, and can extend the service life of the oil and reduce bearing wear. It can be used in conjunction with hydraulic oil purifiers.

Technical Parameters

Filter element series: 0330R

Bypass valve type: oil suction without bypass valve

Filtration accuracy: 10um

Filter material: low pressure glass fiber

Exoskeleton type: non-rhombic exoskeleton

Pressure difference of filter element: 21MPa

Working temperature: -10～+100℃

Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol

Features

The pores of the filter element are uniform and the filtration precision is precise;

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

The matching filter element of the oil filter machine is suitable for low temperature and high temperature environments; it can be reused after cleaning without replacement.

Good filtration performance, uniform surface filtration performance for the filtration particle size of 2-200um.

The structural strength is stable.
