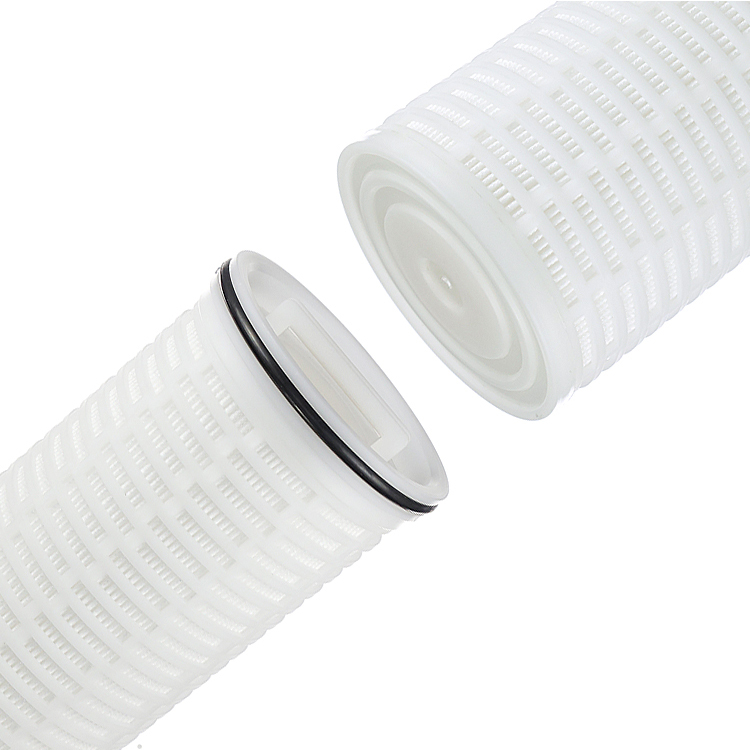

Large Flow Water Filter Element
Large Flow Water Filter Element The structure of melt-blown polypropylene ultra-fine fiber filter media Designed to fit standard bag filter housings (containers need to be inverted plumb) The radial pleated design provides a larger surface area in a single filter element Reusable O-ring seal
Large Flow Water Filter Element
The structure of melt-blown polypropylene ultra-fine fiber filter media
Designed to fit standard bag filter housings (containers need to be inverted plumb)
The radial pleated design provides a larger surface area in a single filter element
Reusable O-ring seal
| Dimension | Removal Rating:0.5μm,1μm,3μm,5μm,10μm,20μm,50μm,75μm,100μm |
| Length:20"(508mm),30"(762mm),40"(1016mm),50"(1270mm),60"(1524mm) | |
| OD:φ152-170mm | |
Material of Constructions | Media:Polypropylene(PP)/Glass Fiber |
| Drain layer:China Non-Woven Fabric | |
| End Cap:Polypropylene(PP) | |
| Gasket:Silicone,EPDM,NBR,Viton | |
| Core:Polypropylene(PP) | |
| Performance | Max.Operating Temperature:80℃ |
| Max.Operating DP:4.0Bar@21℃,2.4Bar@80℃ |
Detail
If you have any questions, please feel free to contact us and look forward to working with you.
