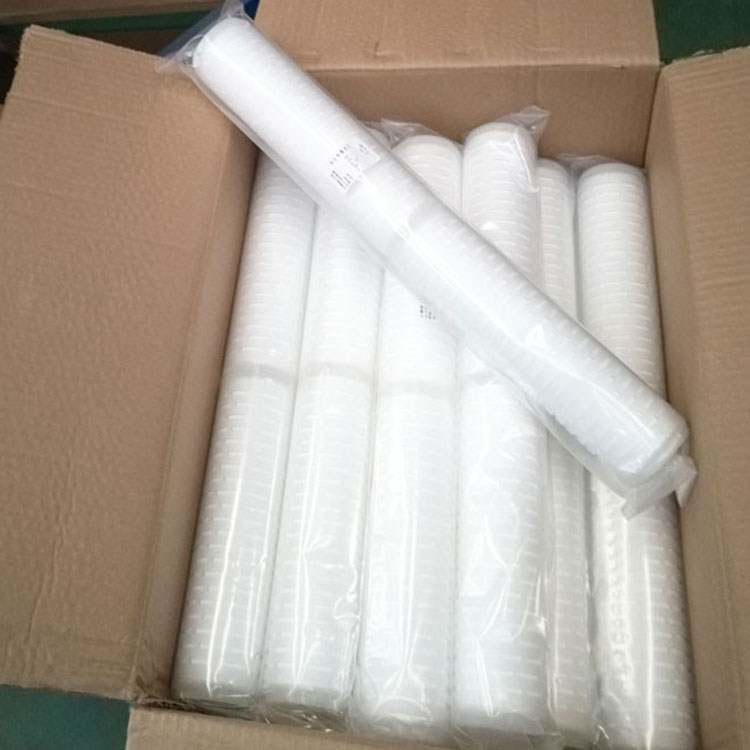

PES Pleated cartridge filter
PES Pleated cartridge filter is mainly used in liquid filtration, air filtration and other industries.The filter shell is folded by the filter membrane and non-woven fabric as the supporting layer. The center rod and the end cover are processed and formed by hot melt welding technology, without any
Product Description
High performance polyether sulfone folding filter element, polyether sulfone uniform pore size distribution makes the filter element has excellent bacteria retention ability.The good chemical compatibility and hydrophilicity of polyethersulfone make the folding filter element widely used in pharmaceutical and biological industry, beverage and drinking water, etc.The production of polyethersulfone conforms to GMP standard.Polyether sulfone (PES) folding filter element in the production process strictly control the production environment, to ensure the quality and cleanliness of the filter element.The integral seal of the filter element is processed and formed by thermal fusion welding technology, which reduces the oxidation degree of the filter element to the maximum extent and prolongs the service life of the filter element.
Product characteristics
1. The hydrophilic
2. Extensive chemical compatibility
3. Uniform pore size distribution has excellent ability to intercept bacteria
4. The material meets FDA standards
5. Adopt hot welding technology
6. Complete integrity testing
Product application
1. Bacterialization and filtration in the pharmaceutical and biological industry
2. Filtration of drinking water, beverages and alcohol
3. Filtration of high purity water and deionized water
4. Purification and filtration of chemical raw materials
5. Pre filter
Size (inch) | 5､10､20､30､40 |
Bore diameter (μm) | 0.22-0.45 |
OD (mm) | 70 |
Inner diameter (mm) | 28 |
Filter material | Polyether sulfone membrane |
Support material | polyester fiber |
kernel material | High strength polypropylene |
Material in the outer core | High strength polypropylene |
Applicable pH range | PH1-14 |
Forward differential pressure: 4.2bar@20 ℃ 2.0 bar @ 80 ℃
Reverse differential pressure: 2.1bar@20℃
Recommended replacement pressure: 2.4bar@20℃
Integrity test: bubbling point (20℃)
Pure water: 0.22 mu m acuity 3.2 bar
0.45 mu m acuity 2.8 bar
Filter Length | Interface | Seal ring | Precision | |
MRCFE | 05 | DO | S | 0022 |
5 :5 inch 10: 10 inch 20: 20 inch 30:30 inch 40:40 inch D(Other)
| DO:plain top 222:(222) 226:(226) 215:(215) | S: Silicone V: fluorelastomer PFA:Package four fluorine E:EPDM | 0022: 0.22um 0045: 0.45um 0100:1 um 0300:3 um 0500:5 um 1000:10 um 3000:30 um |
