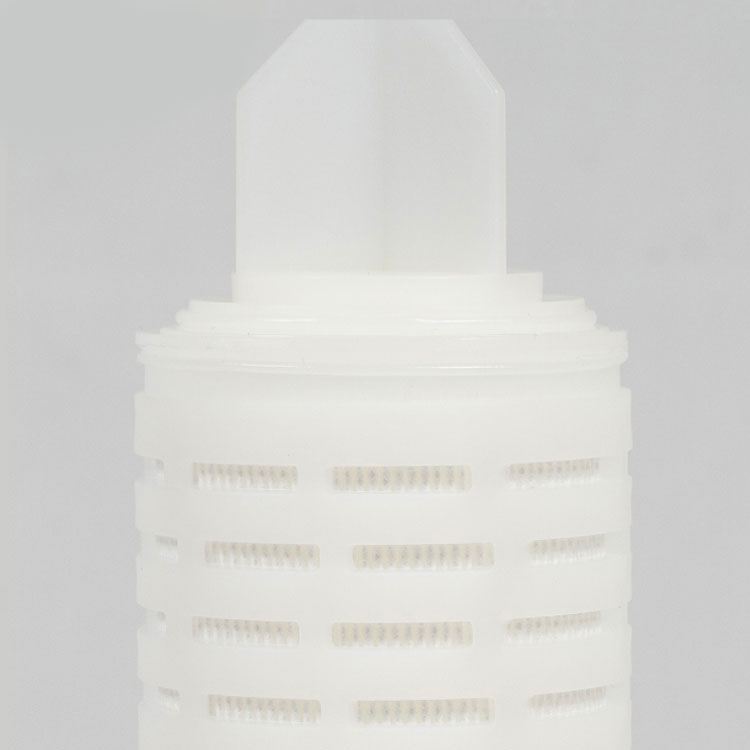

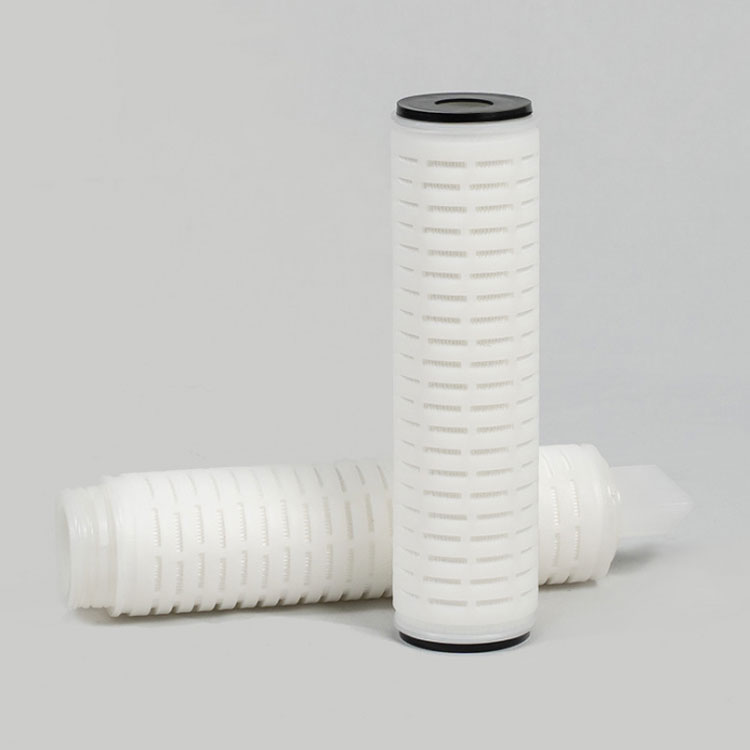

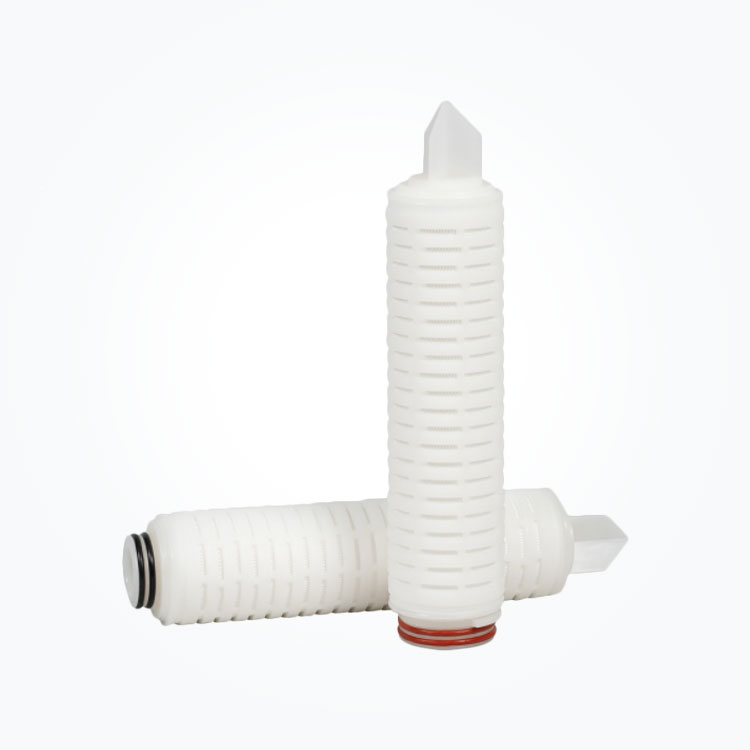

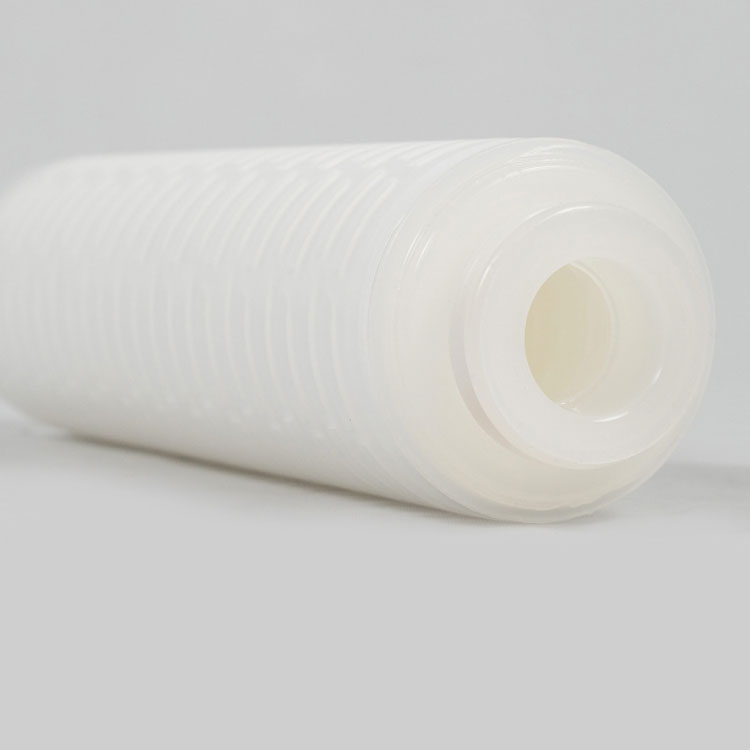

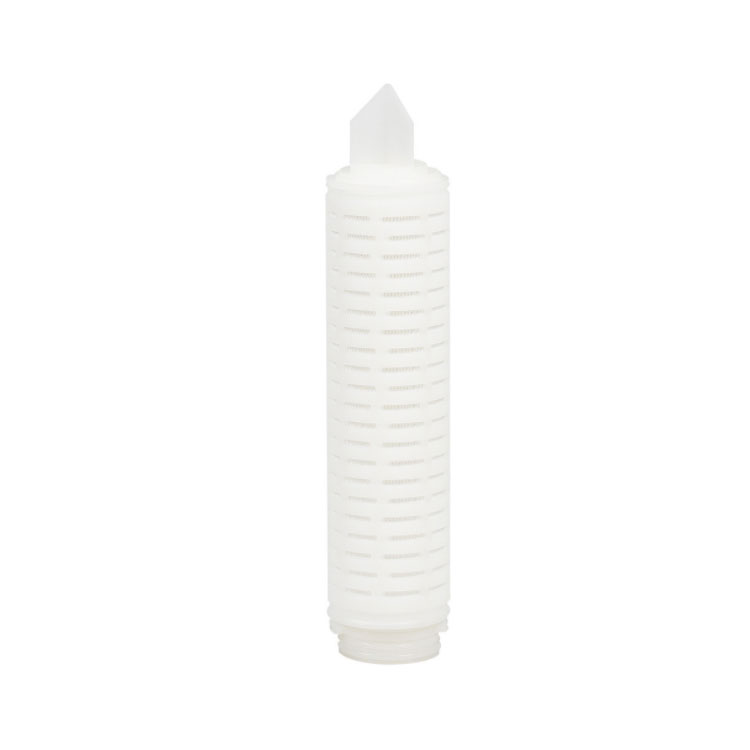

Polypropylene folding filter element
Polypropylene folding filter element is a kind of ultra-fine polypropylene fiber filter material as the filter medium of fixed aperture deep filter element, filter material in line with the relevant FDA requirements.
Polypropylene (PP) folding filter is widely used in food, medicine, biology, brewing, dairy, beverage, semiconductor, water treatment and other industries.NX Filter manufactured polypropylene (PP) folding Filter core aperture distribution is uniform, high flow rate and large amount of pollutant interception.Polypropylene is used in many fields because of its wide chemical compatibility.
Product characteristics
1. All polypropylene structure
2. Adopt gradually denser fiber materials
3.0.1 to 40um apertures
4. High surface area
5. Extensive chemical compatibility
6. Adopt hot welding technology
7. Low pressure difference and long service life
Product use
1. Food and beverage industry: mineral water, fruit juice filtration
2. Chemical industry: organic solvent filtration
3. Petroleum industry: oil field water injection pre-filtration
4. Electronic industry: high purity water prefiltration
5. Pharmaceutical industry: liquid drug filtration
Size（inch） | 5、10、20、30、40 |
Pore diameter（μm） | 0.1-50 |
Outer diameter（mm） | 70 |
Inner diameter（mm） | 28 |
Filter material | 100% polypropylene fibre |
Support material | polypropylene fiber |
Kernel material | High strength polypropylene |
Material in the outer core | High strength polypropylene |
Filter area: ≥0.68㎡/10inch
Working temperature
Common polypropylene shell:<60℃
Polypropylene shell + end and inner lining:<80℃
Polypropylene shell + full lining:<95℃
Forward differential pressure: 4.2bar@20℃
Recommended replacement pressure: 2.4bar@20℃
Biosafety
Endotoxin:< 0.25EU/mL (10inch)
Dissolution: ≤ 25mg (10inch)
Filter length | Interface | Seal ring | Precision | |
MRCFP | 05 | DO | S | 0022 |
5: 5 inch 10: 10 inch 20: 20 inch 30: 30 inch 40: 40 inch D ( Other ) | DO: plain top 222: ( 222 ) 226: ( 226 ) 215: ( 215 ) | S: silica gel V: fluorelastomer PFA：Package four fluorine E:EPDM | 0022: 0.22um 0045: 0.45um 0100: 1 um 0300: 3 um 0500: 5 um 1000: 10 um 3000: 30 um |
