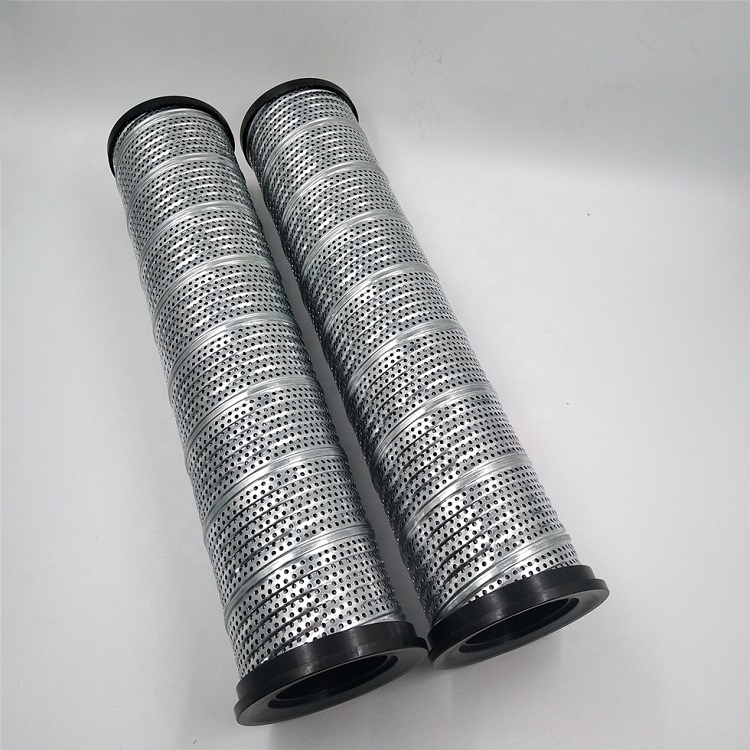

Replacement For Parker Filter Element 937400Q

Model 937400Q,this filter can be used for fine filtration in hydraulic systems. Installed on the fuel tank cover, the filter head should be taken out of the fuel tank, the filter bowl should be immersed in the oil, and the oil inlet should be threaded and flanged. The filter has an indicator and a bypass valve. When dust accumulates in the filter element or the system temperature is too low and the oil inlet pressure reaches 0.35Mpa, the indicator will send out a signal, indicating that if the filter element does not undergo any maintenance and the pressure reaches 0.4Mpa, the bypass valve will automatically open , To ensure the safety of the hydraulic system. Replace the filter element and it is easy to be injured, and it should be kept unobstructed. Fill the fuel tank: open the filter cover, you can replace the filter element or fill the fuel tank with oil. With two oil ports M18X1.5 on the oil filter head, the indicator can be installed in any part and can filter some oil. The oil filter element that may return to the oil tank has a diffusion function. The filter element is located at the bottom of the filter element, which helps the medium to flow steadily to the storage tank and prevents air from entering again. The filter element is made of glass fiber, so the filtration accuracy is high and the initial pressure is low. Filter β3,5,20>200, filtration efficiency η>99.5%, and conform to ISO standard.

If you are not sure exactly what filter you need, please inform its exact working environment and usage. We will help you choose some suitable filters.
