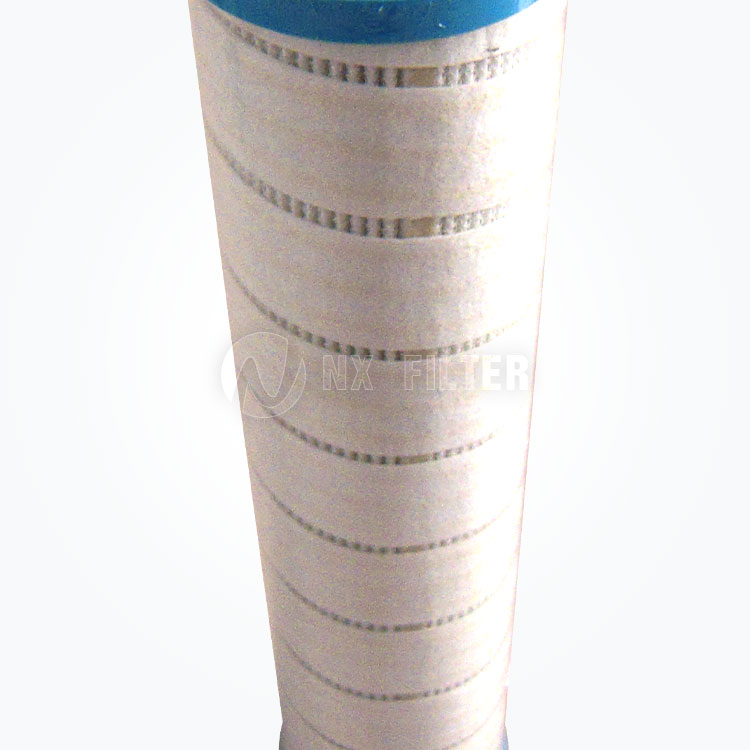

Replacement PALL UE319AS13H oil filter
This is a product that our company replaces PALL filter element. Filter element is mainly used in hydraulic system, used to filter solid particles and colloidal substances in the working medium, effectively control the pollution degree of the working medium, to achieve the role of purifying medium.
This is a product that our company replaces PALL filter element. Filter element is mainly used in hydraulic system, used to filter solid particles and colloidal substances in the working medium, effectively control the pollution degree of the working medium, to achieve the role of purifying medium.
Product details
1. The end cover
Stainless steel, machining, stamping cold plate, ABS engineering plastics, to meet the different needs of customers, quality assured
2. The skeleton
Punching plate, stainless steel, machining, spiral, plastic and other thickened skeleton, can not be calibrated as [filter layer] imported glass fiber, metal mesh filter layer using multi-fold folding process to form a complete filter, no leakage, no media off phenomenon
3. The joint
Metal, bonding pieces, adhesive, etc. Voltage type, welding type bonding
Parameters
Material glass fiber filter paper -BN stainless steel braided mesh - W wood pulp filter paper -P stainless steel sintering mesh -V
Filtration accuracy 1μ -100 μ
Working pressure :21bar-210bar
Working medium: general hydraulic oil, phosphoric acid hydraulic oil, emulsion, water-glycol
Operating temperature: -30°C~+110°C
Sealing material: fluorine rubber ring butadiene rubber
Show
Our company replaces the type of filter element
1 replace imported oil filter element
In the hydraulic system, it is used to filter the solid particles and colloidal substances in the working medium, and effectively control the pollution degree of the working medium. This series of substitute imported oil filter elements are the substitute products for imported equipment, which can replace PALL, HYDAC, Dasheng, MANN and other products.
2. Hydraulic oil filter element
Industrial oil such as hydraulic oil. Transformer oil, turbine oil, refrigerant oil, lubricating oil and fuel resistance will be mixed into some impurities due to various reasons in the process of use, the main impurities are mechanical impurities. Water and air, these impurities will cause corrosion to speed up, increase mechanical wear, reduce work efficiency, make oil deterioration to reduce the service life of equipment, serious will produce oil blockage caused by production accidents.
3. lubricating oil filter element
Not only can the system quickly achieve and maintain the desired level of oil cleaning but also reduce bearing wear and prolong the service life of oil.
4. High-pressure oil filter element
This series of high pressure oil filter is installed in the oil circuit of the hydraulic system to remove the metal powder and other mechanical impurities worn by the components of the hydraulic system to keep the oil circuit clean and extend the life of the hydraulic system. Low pressure series filter element also has a bypass valve, when the filter element is not replaced in time, the bypass valve can be opened automatically to ensure the normal operation of the system. This series of products is the replacement of similar products in The United States, Germany, Britain, Italy and other countries.
