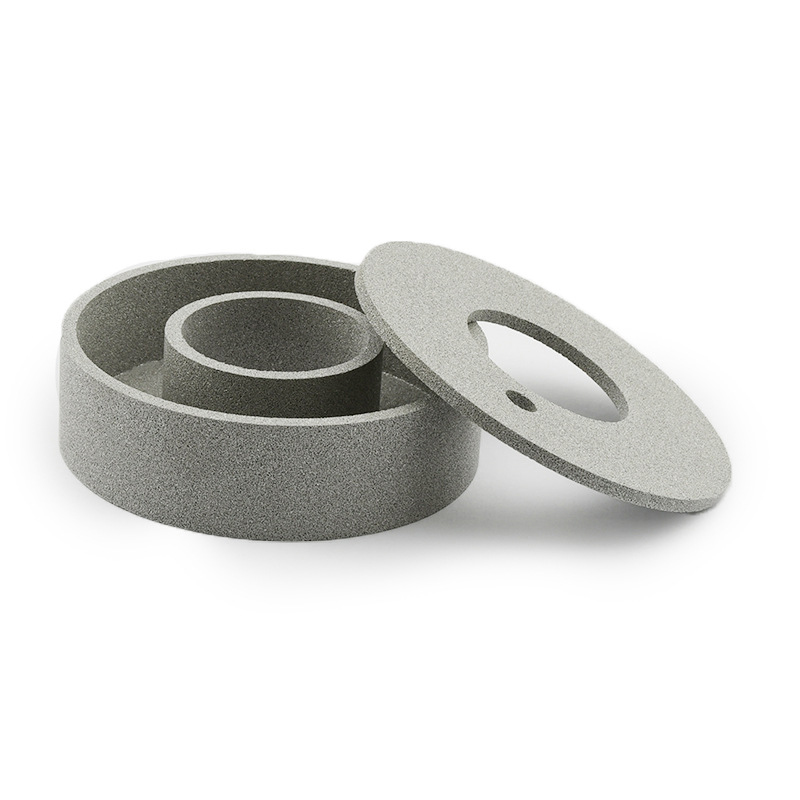

Stainless steel sintered filter element chemical special-shaped filter element

High-pressure breathable, corrosion-resistant, gas-liquid solid-liquid separation, filtering impurities

Stainless steel edging sintered filter




Selected 316L stainless steel material is resistant to 600°C high temperature, acid and alkali

Thermal shock resistance, corrosion resistance, non-deformation high strength, high hardness, durable



Precise and uniform pore size distribution

Good air permeability, consistent filter hole size, excellent quality, small dimensional tolerance



20+ years of industry production experience

Strength manufacturers, professional manufacturing

High difficulty sintered stainless steel filter element




Properties of sintered porous materials of stainless steel

1) High temperature resistance, normal use below 500℃.

2) High mechanical strength, good plasticity, can be machined.

3) Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.

4) Good molding process, can be processed in accordance with customer drawings molding.

5) High filtration accuracy, good purification effect.

6) The pores are uniform, the internal structure is stable, and no particles fall off.

7) Good air permeability, easy to blow back cleaning, online regeneration and repeated use.

8) Wear resistance and impact resistance, good mechanical properties.


The application of sintered porous stainless steel material

 1) chemical raw material production process in the removal of impurities filtration, material decarbonization filtration and fine filtration.

 2) Ultrafiltration, RO, EDI system security filtration in water treatment.

 3) Clarification and filtration of finished products in food and beverage industry.

 4) Filtration recovery of precious metal catalysts in petrochemical industry.

 5) Precision filtration of liquid raw materials, products and pharmaceutical intermediates in chemical industry.

 6) Security filtration of reverse osmosis in fields of oilfield water injection filtration.

 7) Gas purification of steam, compressed air oil purification.

 8) Medium purification and flow limitation for pneumatic components, lubricating oil, fuel oil and hydraulic pressure systems.

 9) High temperature decarbonization of chemical dye industry.


Stainless steel sintered porous materials allowed for use in:  Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, hydrogen, carbon dioxide gas, water vapor, etc.



Notes on the use of stainless steel sintered porous materials

1) Avoid scratches, collision, smashing and other damage of hard objects in the process of installation, disassembly and cleaning.

2) Filtrate should be filtered from the outside to the inside, and the opposite direction should be avoided.

3) Avoid instant and rapid pressurization when the filter element is working.

4) When the filtering efficiency is lower than 50%, the filter element should be cleaned in time.

5) When cleaning the filter element, first use pure gas to blow back, and the pressure of the backblowing gas is 1.5 times of the working pressure. Each time, the backblowing time is 3-5 seconds, and the backblowing time is 4-6 times. Then use clean liquid to backwash for 3-5 minutes, repeated 2-3 times.

6) If the effect of the filter element is not good after online backblowing and backwashing, it should be removed in time for cleaning.


Cleaning method for sintered porous materials of stainless steel

1) The decarbonization filter elements in the pharmaceutical and chemical industry mainly use the method of back blowing and back washing, combined with ultrasonic cleaning effect is the best.

2) The filter element in the water industry is mainly soaked with 5% nitric acid.

The raw liquid filter element should be soaked by pickling (5% nitric acid) or alkali washing (3-5% sodium hydroxide) and then washed and cleaned by ultrasonic wave according to the chemical properties of filtering impurities.
