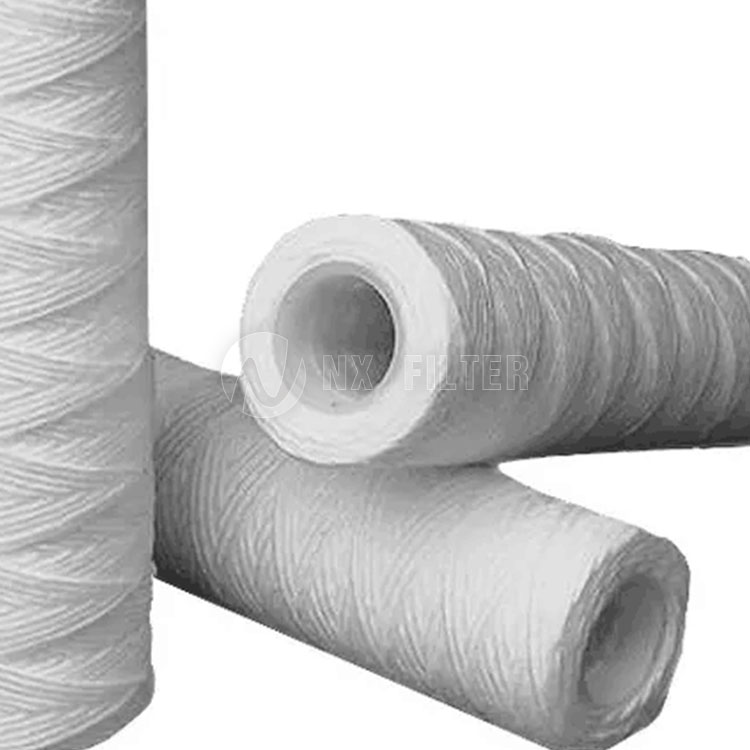

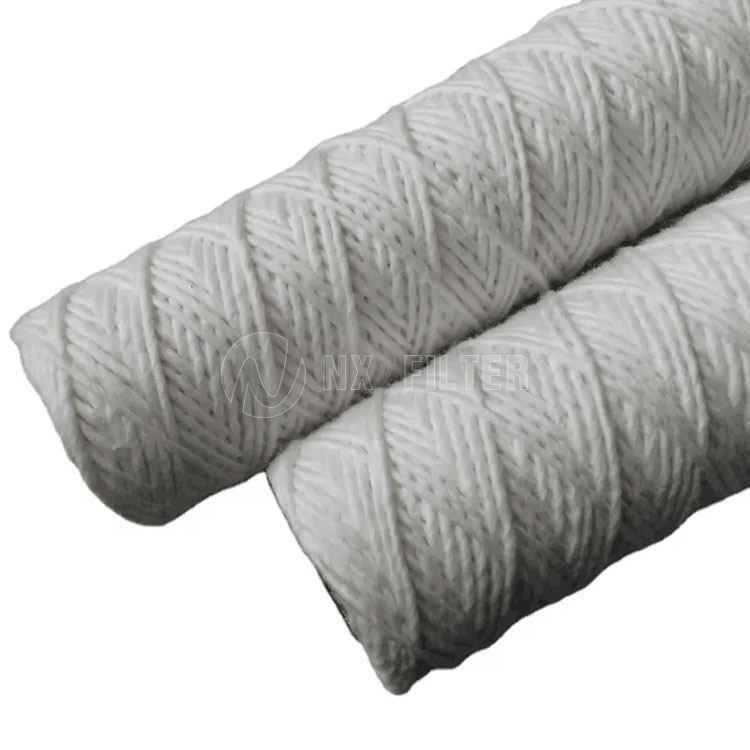

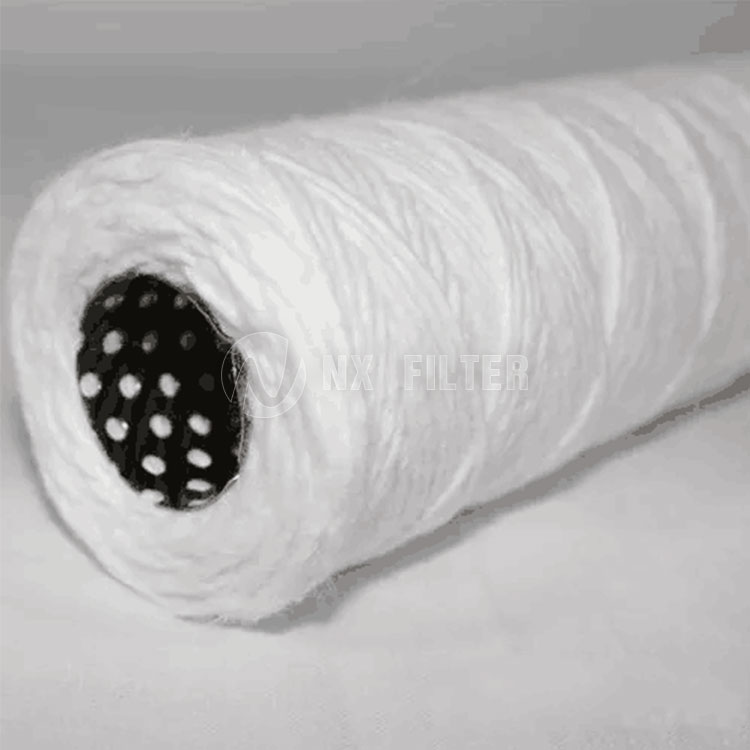

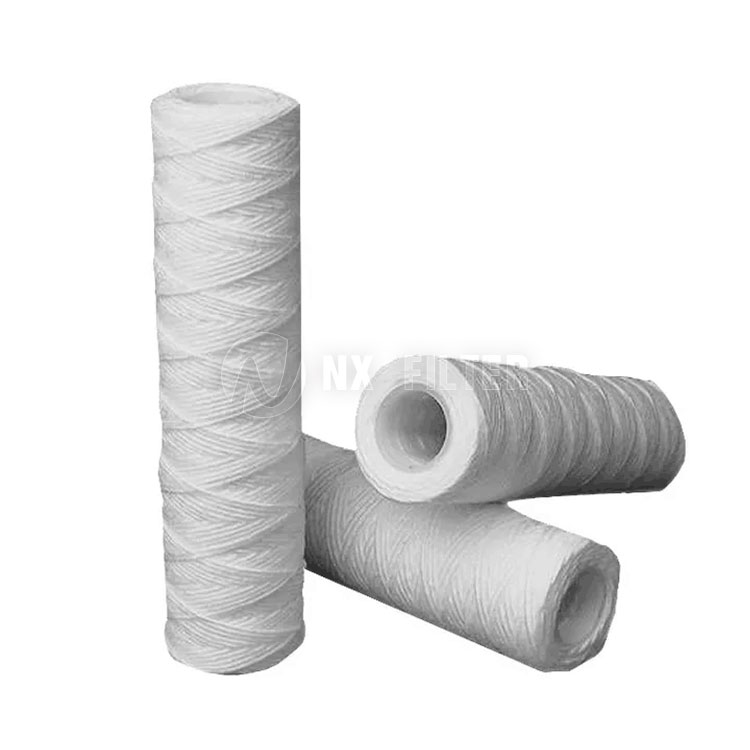

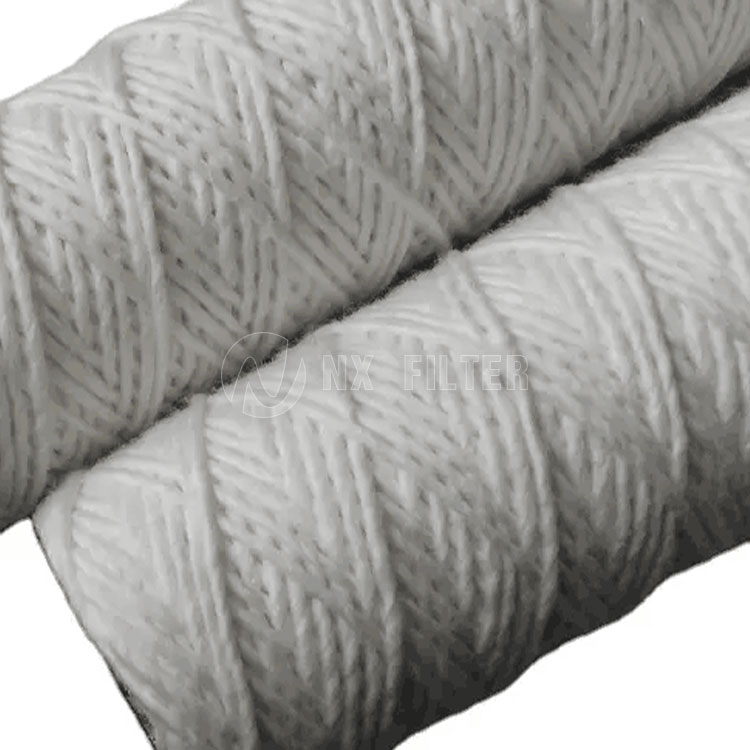

String wound filter 5inch micron PP yarn filter cartridge for sediment filter

PP string wound filter cartridge  is composed of textile fiber yarn tightly wrapped around the porous core,the control filter layer winding density and filter shape to form a different filter accuracy of the filter,can effectively remove the liquid suspended solids, particles, etc.

Featuers

Filter has a good compatibility

Filter can be made of a variety of materials to meet the needs of a variety of liquid filtration

Filter pore structure within the dense outside the sparse, with a good deep filter effect

Pressure drop is small, a large amount of pollutants

Specification

Application

• Cotton: Organic solvent, water, oil, alkalinity solvent, beverage, pharmaceuticals
• Polypropylene: Water, dilute acids, oxidizing agents, plating solution;
• Glass fiber: Chemicals, organic solvent, strong acid and alkali, high temperature resistance;
Recommended Operating Conditions
• Maximum differential pressure: 4.5bar at 25℃
• Recommended change out: 1-1.5bar
• Maximum temperature: PP yarn + PP core (80℃); Cotton yarn + SS core (180℃); Glass fiber + SS core (200℃)

 Packing

 1. Firstly, wrapped in plastic bag, secondly, put into cartons. If necessary, it will be put into standard export wooden box.
 2. Neutral packing, carton inside and wooden outside
 3. Sometimes according to customers’ request
Shipping:
   Our product can reach you by air or by sea.

FAQ

1.Q: Are you manufacturer ?

A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.

2.Q: What are your main products ?
A: Our products are industrial water filter cartridges, oil filter cartridge, air filter cartridge and so on.

3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.

4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value not big,but the courier charge will be on your side. And we'll send back the courier charge if you place an order to a certain amount.

5.Q: What’s your payment terms ?

A: Mainly accept Paypal,West Union and T/T,L/C is also available if order amount big.

For Samples: 100% in advance via Paypal,West Union or T/T.

Formal order: can be further discussed.

6.Q: Can I get your products with our logo and design ?
A: Most of products are OEM or ODM with your logo and customized products will be extra costed.

7.Q: What is your delivery time ?

A:In normal condition, the delivery time is 7-15days for regular products if we have enough raw material. For big order quantity, we'll firstly try our best to meet your demand offer you the shortest delivery time.
