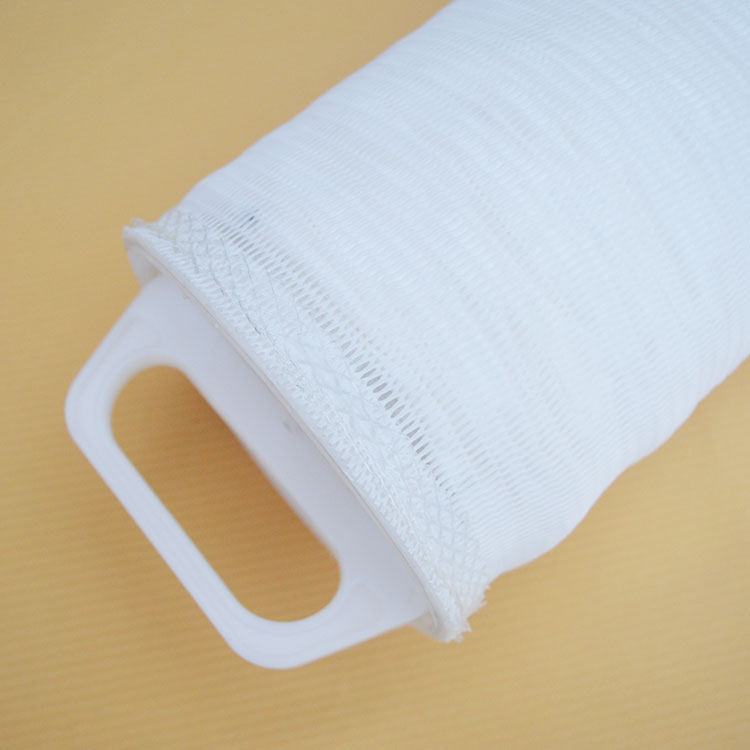

WHF high flow filter element

Product Application

• RO security filtration, rapid cold water, desalted water, water filtration

• Reuse of urban water and wastewater

• Filtration of condensate water in power plant

• Filtration of raw materials, solvents and water in biopharmaceutical industry

• Filter bottled water, food liquid, edible oil, fruit juice, soft drinks, milk

• Amine desulfurization, oil well reinjection water, filtration of produced water

• Electronic application: RO pre-filtration, process water

Product Feature

• All supporting layers and components are made of polypropylene

• Gradual aperture structure

• When filtering water, the flow rate of one filter element can reach up to 110m3/h Filter system size can be reduced by 50% at most

• The flow direction from outside to inside ensures that all impurities are trapped outside the filter element

• The manufacturing process does not use any adhesive, adhesive or silicone adhesive

• Multi-fold and multi-fold design of inner skeleton can replace similar foreign competitive products

Technical Specifications

Filter size

• External diameter: 6inch(152mm)

• Length: 20inch, 40inch, 60inch

Parts material

• Filter material: Folding glass fiber, Folding deep polypropylene (PP), Dissolving spray polypropylene

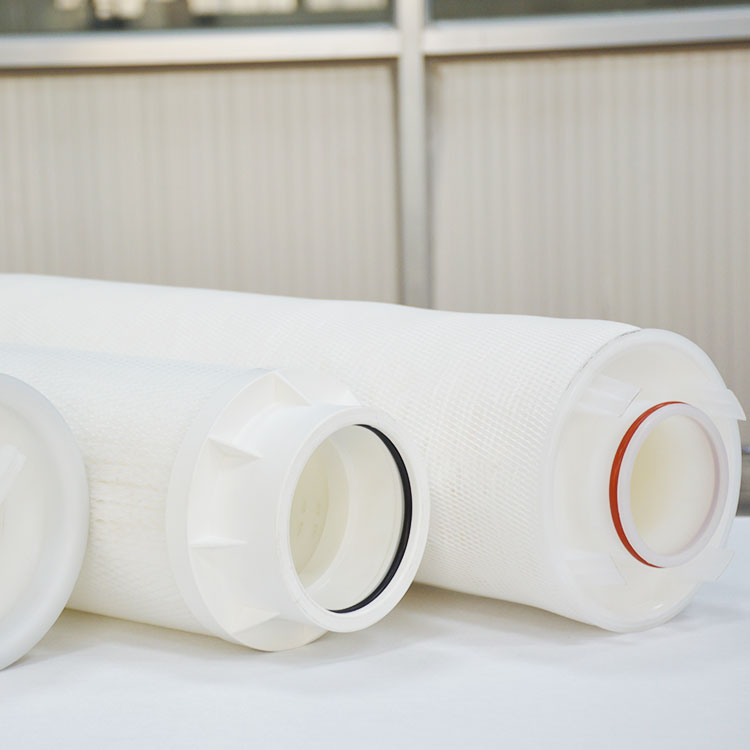

• Sealing ring material: Various kinds of sealing rings are available, including EPDM, silicone rubber, NBR and fluorocarbon rubber

Filter performance

• Filtration precision: 1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm

• Maximum operating temperature: Folding glass fiber: 121℃ Folding polypropylene: 82℃ Melt blown polypropylene: 65℃

• Maximum pressure drop: Folding glass fiber: 3.4Bar, 121℃ Folding polypropylene: 3.4Bar, 82℃ Melt blown polypropylene: 1.03Bar, 65℃

• Recommend pressure drop for filter element replacement: 2.4Bar, 20℃

• Recommending maximum filter water flow: 20inch long filter, 660LPM 40inch long filter, 1300LPM 60inch long filter, 1900LPM
